Merging Script Fonts in Carbide Create V6

Posted on Aug 31, 2021 by Rob

Script fonts are always popular for CNC designs. The difficult part of using a script font is that you usually want the letters in the text merged into a single object rather than a separate set of characters that are next to each other, but not combined.

We’ll use Carbide Create V6, which includes new tools to make this easier.

Install script font

Dafont script fonts

For this short how-to, we’ll use the Brush Script MT font that typically comes installed with Windows 10 and later. If you don’t have any script fonts available, you can download a number for free from https://www.dafont.com.

Create text

Launch Carbide Create and create a new text object. In this example, we’ll pick a height of 50mm, around 2 inches, and use the Brush Script MT font.

  • Set a height of approximately 2 inches
  • Enter “Carbide” as the text
  • Press Apply
  • The text will be shown in the drawing view.

Preview text

Spaced text

To merge the text into a single object, the letters must overlap. In the drawing view, zoom in to the view and inspect the areas where characters should connect and make sure that there is an overlap.

If the text does overlap properly then you can skip the next step. If not, you can change the text spacing to make adjustments.

Change text spacing

Overlapping text

If the text doesn’t overlap then the quickest fix is to reduce the text spacing until it does.

  • Change the text spacing to 99%
  • Click Apply

The drawing view will update with the new spacing. If it overlaps, you’re ready to move on to the next step. If not, reduce the spacing to 98% and try again. It rarely requires more than a couple of percentage points of change to get proper overlap.

Convert to curves

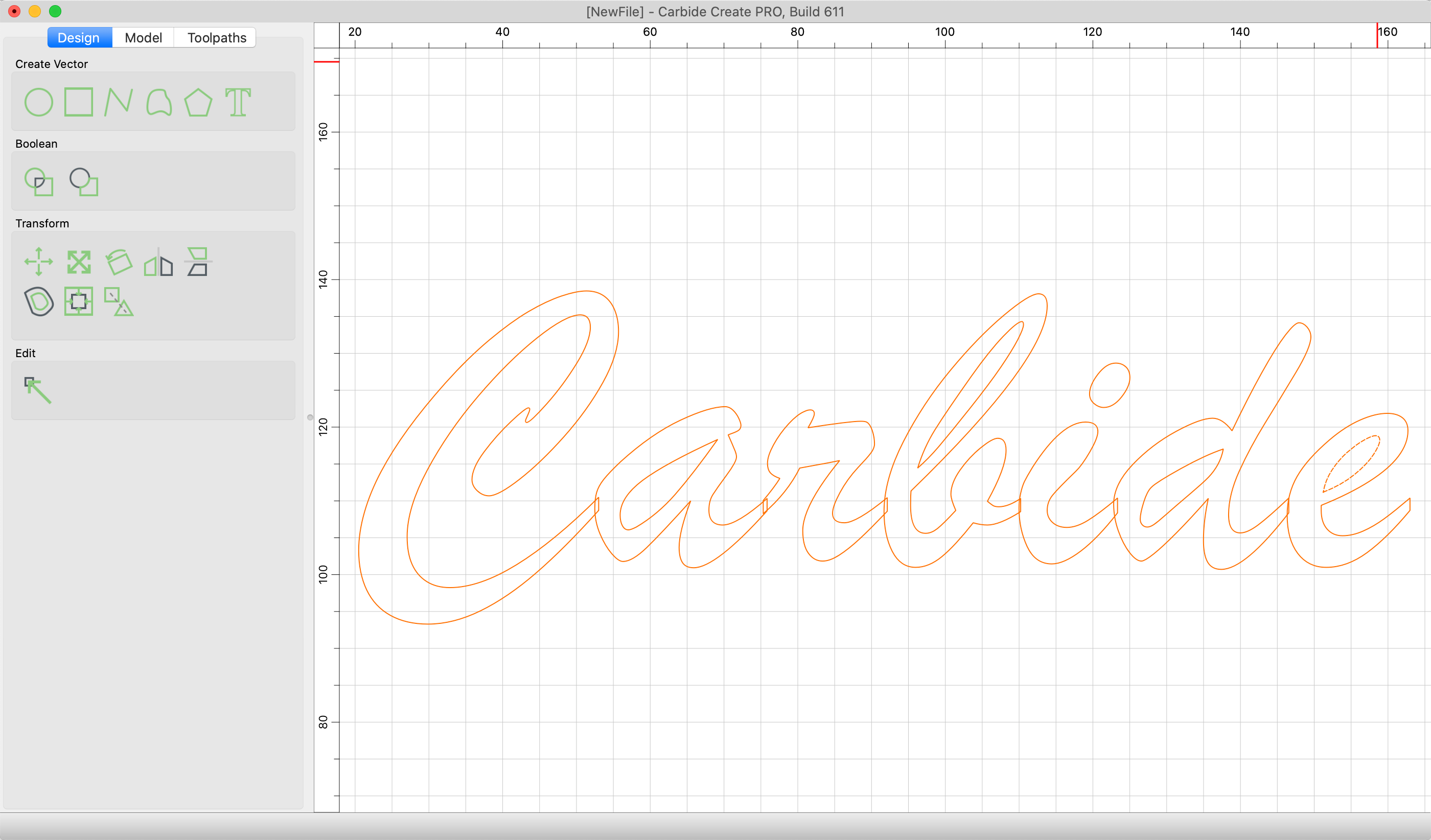

Text Converted to Curves

Once you’re happy with the text, you’re ready to convert objects from text to curves for further modification.

  • Click Convert to Curves

It’s worth noting that once you convert the text to curves, it’s no longer possible to change the text contents. If you need to change the text, wait on this step until you’re ready for toolpaths.

Combine curves with boolean union

Text after boolean

Now that you have a series of curves, click the Boolean Union command to merge overlapping curves into combined objects.

Admire your work

You’ll now have merged text curves that you can machine with a V-carve toolpath or cutout completely with a contour toolpath.
