Cabinet Design Software

Introduction

Designing cabinets can be tricky, but good software makes it easier. Whether you're a pro, a DIY fan, or a designer, cabinet software can help you plan and build your projects better. In this article, we'll explore some of the top cabinet design software options, including specialized tools and generic CAD software like SOLIDWORKS and Alibre Design.

Why Use Specialized Cabinet Design Software?

Cabinet design software offers several advantages over generic CAD software:

• Accuracy: Precise measurements and detailed drawings reduce errors.
• Visualization: 3D renderings help clients visualize the final product.
• Efficiency: Purpose-built software automates many aspects of the design process, saving time.
• Cost-Effectiveness: Optimizes material usage and reduces waste.
• Integration: Advanced software can generate CNC codes and optimize material cutting.

Specialized Cabinet Design Software

Mozaik

Mozaik offers a comprehensive suite of tools for the cabinet industry, including:

• Design-to-manufacture solutions for cabinets and closets
• True-shape nesting and G-code creation
• CNC MDF doors and dovetail drawers
• Job costing and project management

Generally speaking, Mozaik is the first option to look at if you're looking for dedicated Cabinet Design Software. It's not cheap, but it's very reasonable if this is your primary business.

Pro100

Pro100 is a professional-grade software designed specifically for cabinet makers. It supports various cabinet types, including frame and frameless, custom and standard, and even entertainment centers and closets. Key features include:

• 3D renderings with dimensioned floor plans and room elevations
• Cut lists, cabinet lists, job costing, and pricing
• Customizable designs with specific dimensions
• Integration with CNC software for seamless data import and G-code creation
• Extensive library of cabinet shapes, sizes, doors, drawers, and hardware options

Cabinet Planner

Cabinet Planner is known for its user-friendly interface and quick learning curve, making it suitable for both professionals and hobbyists. Features include:

• 3D renderings and accurate cut lists
• Panel optimization to reduce material waste
• DXF files for CNC integration
• No yearly or maintenance fees
• Versatility in designing various types of cabinets, including kitchen, bath, bookcases, and more

Cabinet Planner is the cheapest option on this page, making it a great option for hobbyists.

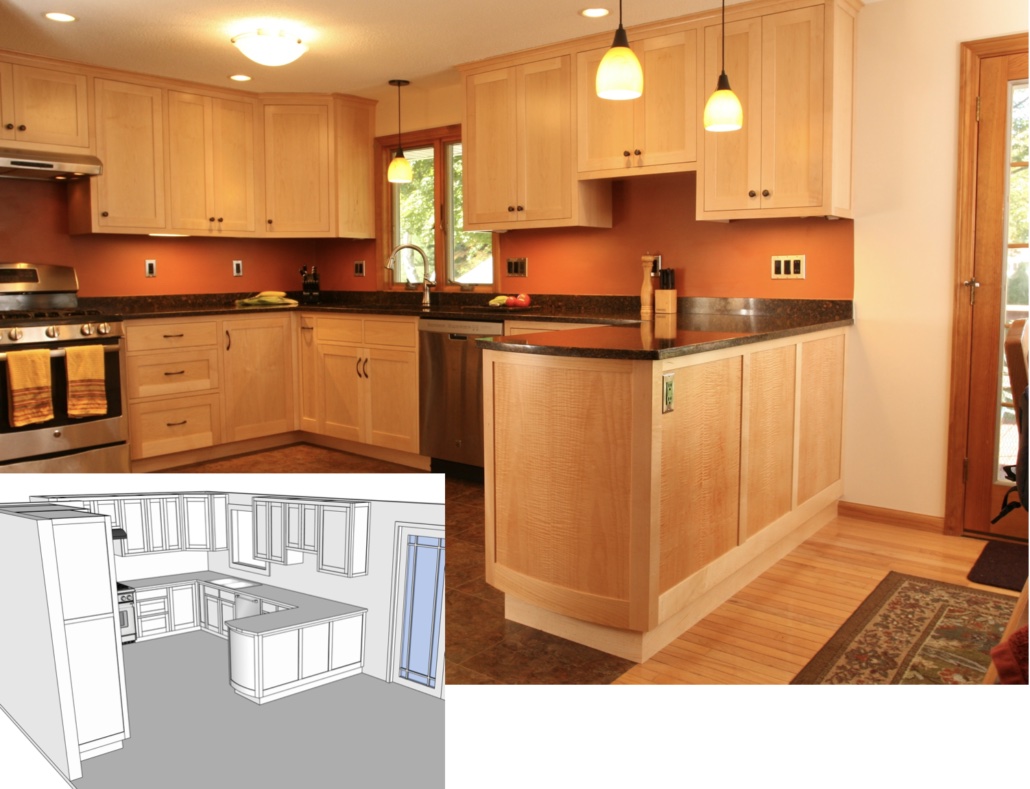

CabWriter

CabWriter integrates with SketchUp, providing a user-friendly interface and advanced features such as:

• Parametric drawing for specifying construction methods
• Story Stick technology for quick layout and drawing
• Large library of pre-designed cabinets
• Professional shop drawings and cut lists
• Native plywood and DXF optimization
• Export capabilities for CNC machines

It's worth emphasizing that CabWriter is a SketchUp plugin that helps streamline cabinet designs, so you'll need to have SketchUp installed on your computer.

Cabinet Vision

Cabinet Vision is a comprehensive software suite for cabinet design, manufacturing, and shop management. It offers:

• 3D modeling and rendering
• Cut lists and job costing
• Integration with CNC machines
• Customizable templates for various cabinet types

Cabinet Vision, like Mozaik, is a bit more expensive than the other options, but it's a great option for professionals who need a complete solution.

Generic CAD Software for Cabinet Design

While specialized cabinet design software offers many advantages, generic CAD software like SOLIDWORKS and Alibre Design can also be highly effective for cabinet design. These tools provide greater flexibility and can be used for a wide range of design and engineering tasks.

Carbide Create Pro

Carbide Create Pro is a powerful CAD software designed specifically design for CNC routers. It features:

• Simple and intuitive interface to 2D designs.
• Built-in toolpaths generation for CNC routers.
• Tiling to allow the machine to cut larger pieces than the machine's work area.

Solidworks

Solidworks is a powerful 3D CAD software widely used in various industries, including woodworking and cabinetry. Key features for cabinet design include:

• Top-Down Modeling: Allows for dynamic adjustments to the layout, maintaining particular hole and shelf spacing.
• Configurations: Create multiple variants of a single cabinet to fulfill various use cases.
• Parametric Design: Equations and design tables add control and logic to the design.
• 2D and 3D Integration: Import existing 2D DXF/DWG files and create detailed 2D drawings for manufacturing.
• Rendering and Visualization: High-quality photo rendering tools for marketing and project proposals[4][8].

Alibre Design

Alibre Design is another robust 3D CAD software suitable for mechanical design, prototyping, and manufacturing. It offers:

• Parametric and Rules-Based Modeling: For complex mechanical systems.
• Sheet Metal Tools: Perfect for designing metal cabinets.
• Assembly Design: Full-design modeling to represent finished designs in every detail.
• Data-Driven Design: Eliminate human error by leveraging data-driven design and parametric modeling.
• Interoperability: Import and export a wide range of file formats, including STEP, IGES, and DXF.

Choosing the Right Software

When selecting cabinet design software, consider the following factors:

• Specific Needs: Are you designing custom cabinets or using standard designs?
• Budget: Some software options require a significant investment, while others are more affordable. Is the software available on a short-term subscription or a one-time purchase?
• Ease of Use: Some tools have a steep learning curve, while others are more intuitive.
• Integration: If you use CNC machines, look for software that can generate G-code.
• Customization: The ability to customize designs and create unique configurations can be crucial.

Conclusion

Cabinet design software helps both professionals and DIY enthusiasts. Specialized programs like Pro100 and Cabinet Planner have features that streamline cabinet work.

General CAD software like Carbide Create, Solidworks, and Alibre Design have the ability to do cabinet design but also work well for other types of projects.

The "right software" is different for everyone, and it can make your job much easier. Look at different options and try a few of them out; there's no one-size-fits-all solution.
